LyoDry Maxi Freeze Dryer: Pilot Scale Pharmaceutical Lyophilisation with Advanced Process Control
As pharmaceutical products become increasingly complex, laboratories and pilot-scale manufacturers need freeze-drying equipment that delivers precise temperature control, repeatable results, and simple operation. Whether you're developing new formulations, freeze drying biological materials, or preparing products for pilot production, choosing the right lyophiliser can have a significant impact on product quality and process efficiency.

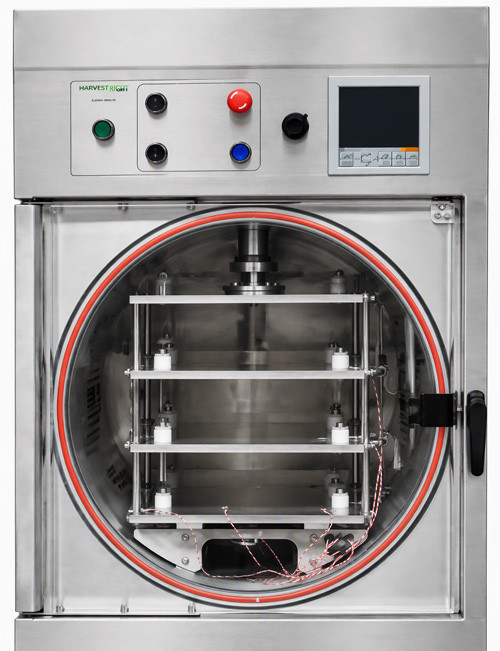

The MechaTech Systems' LyoDry Maxi Freeze Dryer has been specifically designed to meet these requirements, combining advanced automation, flexible shelf configurations, optional vial stoppering, and robust pharmaceutical process control within a compact, laboratory-friendly footprint.
What is Pharmaceutical Freeze Drying?
Freeze drying, also known as lyophilisation, is widely used throughout the pharmaceutical industry to improve stability, extend shelf life, and preserve sensitive compounds. Successful lyophilisation depends on maintaining accurate control over both temperature and pressure during the freezing, primary drying, and secondary drying phases.
For research laboratories and pilot-scale facilities, consistency is just as important as capacity. Reproducible cycles help accelerate product development, support validation activities, and minimise costly process variations between batches.
Pharmaceutical Freeze Dryer for Laboratory and Pilot-Scale Applications
The LyoDry Maxi Freeze Dryer is ideally suited to pharmaceutical laboratories, research organisations, universities, government research facilities, and specialist production environments. Its compact design allows it to pass through a standard laboratory doorway, making installation straightforward even where space is limited.
Unlike larger industrial freeze dryers that often require complex utilities, the LyoDry Maxi only requires a mains electrical supply, simplifying commissioning and reducing installation costs.
Applications include:
Pharmaceutical development
Vaccine and biologics research
Pilot-scale freeze drying
Vial freeze drying
Bulk product drying
Academic research
Food and beverage product development
Conservation and archaeological preservation projects
Flexible Shelf Configurations for Different Batch Sizes
Every freeze-drying application has unique capacity requirements.
To provide maximum flexibility, the LyoDry Maxi is available with either three, four, or five temperature-controlled shelves.
Each shelf measures 360 mm x 480 mm and delivers precise, uniform temperature control throughout the drying process.
With five shelves installed, the system offers up to 0.85 m² of shelf area, making it an excellent solution for pilot-scale production, process development, and lower-volume manufacturing.
Precise Shelf Temperature Control for Reliable Results
Maintaining accurate shelf temperatures is essential for achieving successful lyophilisation outcomes.
The LyoDry Maxi is available in two configurations:
LSM40
Shelf temperature range:-40°C to +60°C
Condenser temperature:-55°C
LSM60
Shelf temperature range:-60°C to +60°C
Condenser temperature:-85°C
Both models provide temperature accuracy better than ±0.5°C, helping users achieve highly repeatable freeze-drying cycles and reliable product quality.
Fully Automated Pharmaceutical Freeze Drying
The LyoDry Maxi has been developed to reduce operator workload while maintaining complete control over critical process parameters.
Its touchscreen control system and central processor automatically manage:
Freezing
Primary drying
Secondary drying
End-point determination
Chamber backfilling
Optional stoppering sequences
Complex pressure and temperature profiles can be programmed and executed automatically, ensuring accurate and reproducible processing with minimal operator intervention.
Data Logging, Audit Trails and Process Validation
In pharmaceutical environments, data integrity and traceability are essential.
The LyoDry Maxi includes:
Continuous process monitoring
Real-time system status display
Integral graphic chart recording
Data and event logging
Audit trail functionality
Comprehensive alarm management
Storage of more than 200 process profiles and recipes
These features support quality assurance programmes, process development activities, and validation requirements while helping operators maintain consistent production standards.
Optional Stoppering for Pharmaceutical Vial Freeze Drying
For pharmaceutical vial applications, the LyoDry Maxi can be supplied with an optional hydraulic stoppering system.
The temperature-controlled shelves can be raised and lowered using a hydraulic ram, allowing vials to be stoppered directly within the freeze-drying chamber. This helps reduce contamination risks and improves workflow efficiency for aseptic processing applications.
Reliable Design for Long-Term Laboratory Operation
The LyoDry Maxi incorporates features designed to maximise uptime and simplify ownership, including:
Automatic hot gas defrost
CFC-free refrigeration
Integral vacuum pump options
Factory acceptance testing prior to shipment
Readily available service components
Installation and commissioning support
Optional IQ/OQ documentation
UK-based service and maintenance support
UK Manufactured Pharmaceutical Freeze Dryer
One of the major advantages of choosing a LyoDry freeze dryer is the local support available from MechaTech Systems Ltd.
Every LyoDry Maxi is designed, manufactured, assembled, and tested in the UK, providing customers with direct access to technical expertise, responsive service support, and long-term maintenance assistance.
Why Choose the LyoDry Maxi Freeze Dryer?
The LyoDry Maxi delivers the perfect balance of capacity, automation, and laboratory practicality:
Up to 0.85 m² shelf area
Choice of 3, 4, or 5 shelves
Shelf temperatures down to -60°C
18 kg condenser capacity
Fully automated lyophilisation cycles
End-point determination
Advanced data logging and audit trails
Optional vial stoppering
Compact laboratory-friendly footprint
UK design, manufacture, and support
Request a Quote for the LyoDry Maxi Freeze Dryer
Whether you're conducting pharmaceutical research, scaling up a new product, or developing a pilot production process, the LyoDry Maxi Freeze Dryer provides the control, flexibility, and reliability needed to achieve successful freeze-drying results.
Contact MechaTech Systems to discuss your application and discover how the LyoDry Maxi can support your pharmaceutical lyophilisation requirements.
